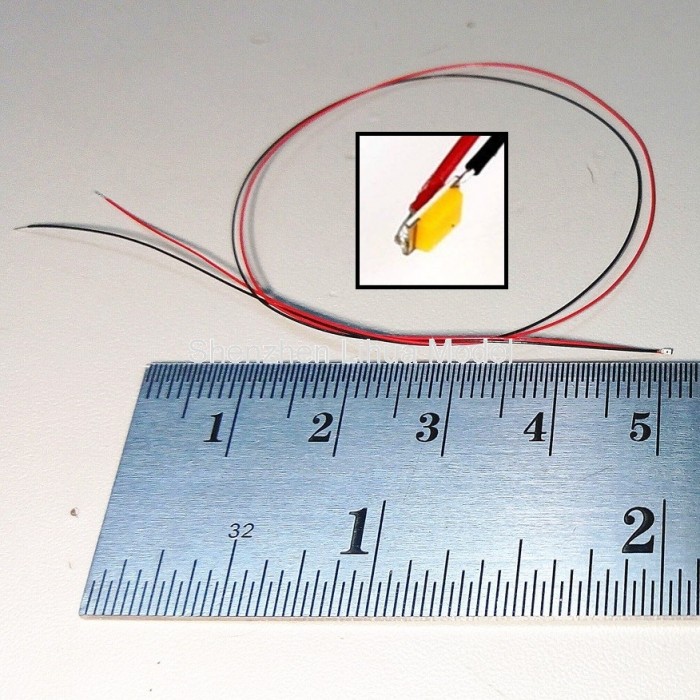

SMD LED with plastic wire

SMD LED with plastic wire
Name: SMD LED with plastic wire
Voltage: 1.8V-3.3V
SMD Size: 0402/0603/0805
  1206/3528/5050
Color: bright white/warm white
  green/blue/yellow/orange/red
Wire Material: copper(in)+plastic(out)
Wire Dia: 0.15mm(in)/0.28mm(out)
Wire Length: 20cm/custom-made
Wire Resistor: not have
MOQ: 100pcs



More details




SMD LED with plastic wire

1. make sure the LED current less than 20mA,or it will be damaged.

Common Name

Imperial Unit

(inch)

Metric Unit

(mm)

Length

(mm)

Width

(mm)
0402 0402 1005 1.0mm 0.5mm
0603 0603 1608 1.6mm 0.8mm
0805 0805 2012 2.0mm 1.2mm
1206 1206 3216 3.2mm 1.6mm
3528 1210 3528 3.5mm 2.8mm
5050 2220 5050 5.0mm 5.0mm



Wire information please check below weblink:

http://www.lihuamodel.com/-accessories/1720-36awg-flexible-wire.html
