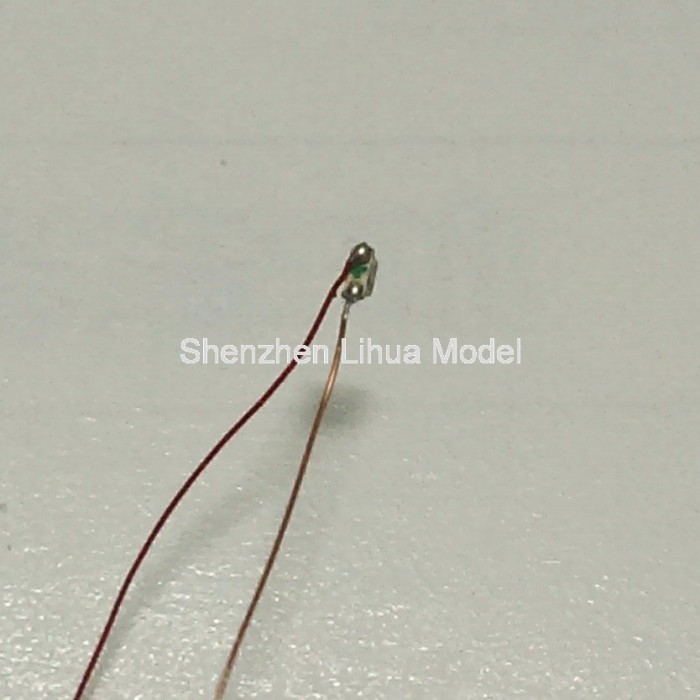

SMD LED with copper wire and resistor
1. make sure the LED current less than 20mA,or it will be damaged.

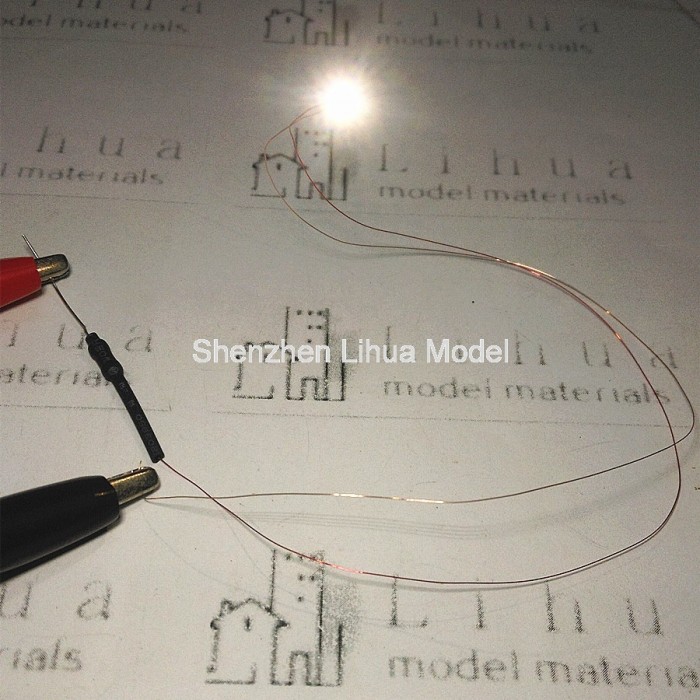

2. The wire have 1.5kΩ resistor,can direct connect 12V-18Vdc,no need add resistor again.
Common Name |
Imperial Unit (inch) |
Metric Unit (mm) |
Length (mm) |
Width (mm) |
0402 | 0402 | 1005 | 1.0mm | 0.5mm |
0603 | 0603 | 1608 | 1.6mm | 0.8mm |
0805 | 0805 | 2012 | 2.0mm | 1.2mm |
1206 | 1206 | 3216 | 3.2mm | 1.6mm |
3528 | 1210 | 3528 | 3.5mm | 2.8mm |
5050 | 2220 | 5050 | 5.0mm | 5.0mm |
