SMD LED with plastic wire&R

Name: SMD LED with plastic wire&R
Voltage: 12V-18V

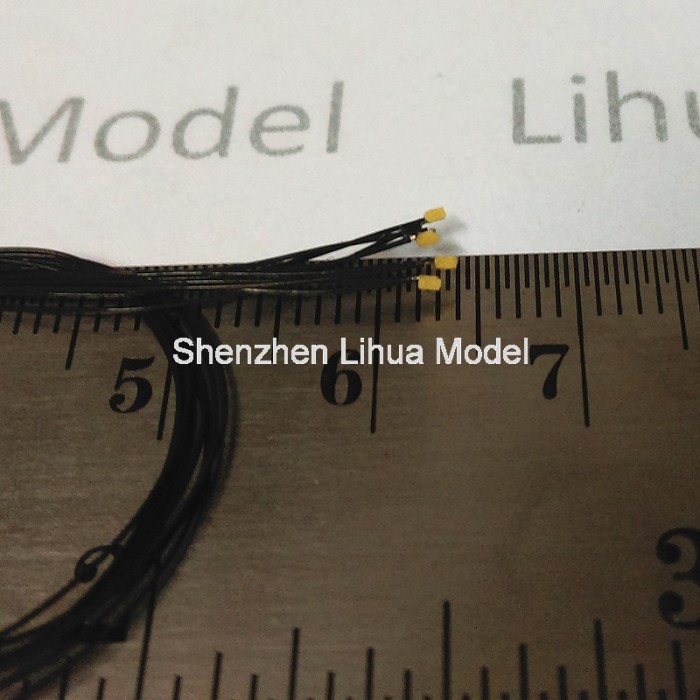

SMD Size: 0402/0603/0805
  1206/3528/5050
Color: bright white/warm white
  green/blue/yellow/orange/red
Wire Material: copper(in)+plastic(out)
Wire Dia: 0.1mm(in)/0.25mm(out)
Wire Length: 20cm
Wire Resistor: 1.5k/custom-made
MOQ: 200pcs



More details

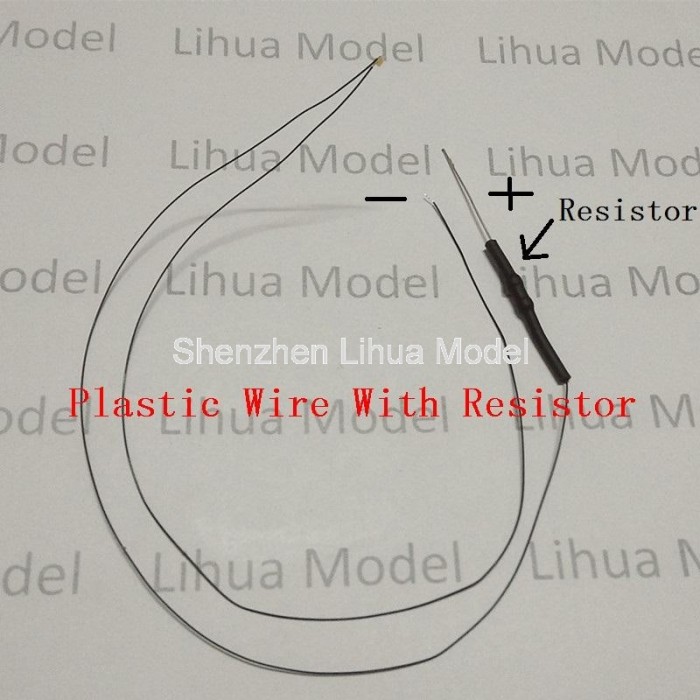

SMD LED with plastic wire and resistor

1. make sure the LED current less than 20mA,or it will be damaged.

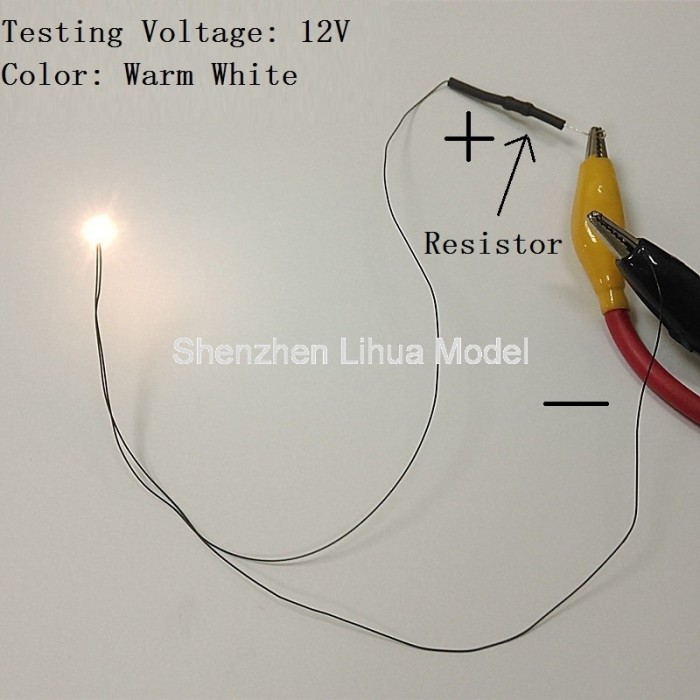

2. The wire have 1.5kΩ resistor,can direct connect 12V-18Vdc,no need add resistor again.

Common Name

Imperial Unit

(inch)

Metric Unit

(mm)

Length

(mm)

Width

(mm)
0402 0402 1005 1.0mm 0.5mm
0603 0603 1608 1.6mm 0.8mm
0805 0805 2012 2.0mm 1.2mm
1206 1206 3216 3.2mm 1.6mm
3528 1210 3528 3.5mm 2.8mm
5050 2220 5050 5.0mm 5.0mm
